Expression for Cascaded Gain of a Circuit
$9.00$4.001737 reads
Question
Transistor parameters to use for this homework set.
Cascaded Gain Problem

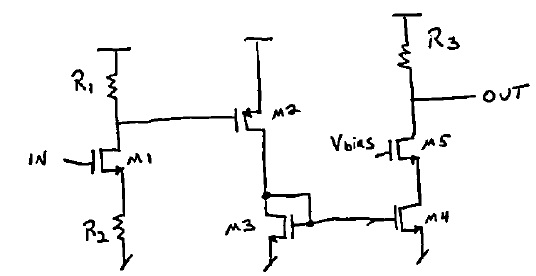

- Derive an expression for the cascaded gain of the circuit below.
- If all the transistors are designed to have gm=2 mA/V and ro=10 kΩ, calculate the value of the gain. Let R1=2 kΩ, R2=0.5 kΩ, R3=10 kΩ. Body effect neglected.
Summary
This question belongs to electronics engineering and discusses about cascaded gain of given circuit.
